1241416-1 | AMP

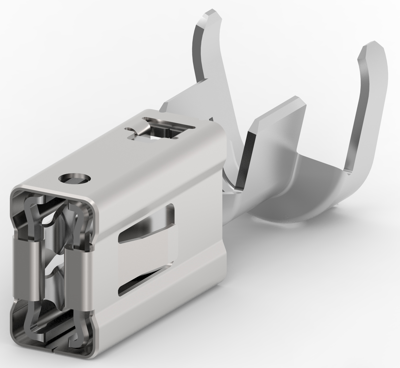

Receptacle, 3.0-4.0 mm², AWG 12-11, crimp connection, tin-plated, 1241416-1
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4641 €
10 pcs.
0.4046 €
50 pcs.
0.3570 €
100 pcs.
0.3094 €
*incl. VAT plus shipping costs
Subject to prior sale
Contacts for motor vehicles, 1241416-1, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 4.8 mm, 5.8 mm, 6.3 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Tin (Sn), Automotive terminal Termination Method: Crimp, Wire Size: 4 mm², Wire Size Search: 4 mm², Wire Insulation Diameter: 3.4 - 4.4 mm, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| contact surface | tin-plated | |
| AWG cross-section | AWG 12-11 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 3.0-4.0 mm² | |
| Version | receptacle | |
| Insulation diameter | 3.4-4.4 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
