1241380-2 | AMP

Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, gold-plated, 1241380-2

Order No.: 35P8945
EAN: 4099889639513
MPN:
1241380-2
Series: AMP MCP

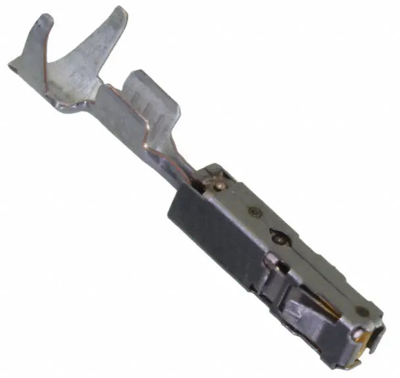

1241380-2 AMP Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.2927 € *
Available: 3,683 pcs.
Total Price:
1.46 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2927 €
10 pcs.
0.2713 €
25 pcs.
0.2523 €
50 pcs.
0.2285 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket contact, 1241380-2, TE Connectivity

Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 1.5 mm, Mating Tab Thickness: 0.6 mm, Interface Plating: Gold (Au), Termination Method: Crimp, Wire Size: 0.5 - 1 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 0.85 mm², 1 mm², Wire Insulation Diameter: 1.4 - 2.1 mm, Operating Temperature Range: -40 - 150 °C.

Technical specifications
Filter Property Value
AWG cross-section AWG 20-17
contact surface gold-plated
Version receptacle
Contact connection crimp connection
Contact surface Connection range tin-plated
Cable cross-section 0.5-1.0 mm²
Insulation diameter 1.4-2.1 mm
Contact material copper-nickel-silicone
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Original Packaging Reel with 4,500 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
