102918-2 | AMP

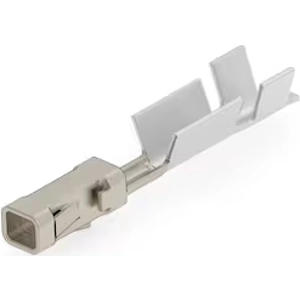

Receptacle, 0.03-0.1 mm², AWG 32-27, crimp connection, gold-plated, 102918-2
Unit Price (€ / pc.)
1.19 € *
Available in 5 Days: 3,040 pcs. - if ordered today
Socket contact, 102918-2, TE Connectivity
Applied Pressure: Intermediate, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 250 VAC, Contact Base Material: Beryllium Copper, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.02 mm, Wire Size: 32 - 27 AWG, Wire Size: 59.2 - 197.35 CMA, Wire Size: 0.03 -0.1 mm², Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Cable cross-section | 0.03-0.1 mm² | |
| AWG cross-section | AWG 32-27 | |
| Contact connection | crimp connection | |
| Contact material | copper beryllium | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| Contact surface Connection range | gold-plated | |
| Insulation diameter | 1.02 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
