102128-2 | AMP

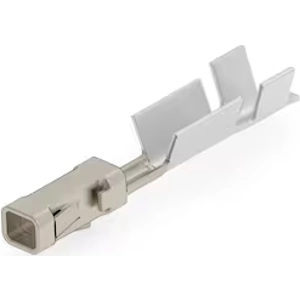

Receptacle, 0.12-0.4 mm², AWG 26-22, crimp connection, tin-plated, 102128-2
Unit Price (€ / pc.)
0.3570 € *
Available: 0 pcs.
Available in 5 Days: 44,910 pcs.
Leadtime: 42 Weeks **
Total Price:
0.36 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3570 €
10 pcs.
0.3094 €
50 pcs.
0.2761 €
100 pcs.
0.2344 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket contact, 102128-2, TE Connectivity
Applied Pressure: High, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 250 VAC, Contact Base Material: Phosphor Bronze, Contact Type: Socket, Contact Mating Area Plating Material: Tin, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.55 mm, Wire Size: 26 - 22 AWG, Wire Size: 236.823 - 789.41 CMA, Wire Size: 0.12 -0.4 mm², Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| Cable cross-section | 0,12-0,4 mm² | |
| AWG cross-section | AWG 26-22 | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface mating area | verzinnt | |
| contact surface | verzinnt | |
| Contact surface Connection range | verzinnt | |
| Insulation diameter | 1,55 mm |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
