1-968857-3 | AMP

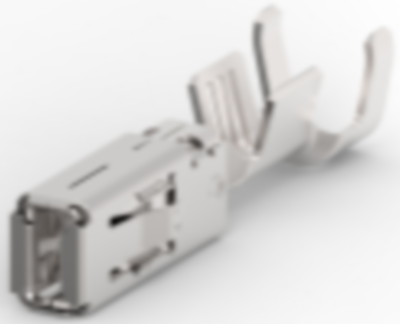

Receptacle, 1.5-2.5 mm², AWG 15-13, crimp connection, silver-plated, 1-968857-3
Unit Price (€ / pc.)
0.2356 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
0.24 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2356 €
10 pcs.
0.2190 €
25 pcs.
0.2047 €
50 pcs.
0.1856 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket contact, 1-968857-3, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Silver (Ag), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 15 - 13 AWG, Wire Size: 1.5 - 2.5 mm², Wire Size Search: 1.5 mm², 2 mm², 2.5 mm², Wire Size Search: 13 AWG, 14 AWG, 15 AWG, Wire Insulation Diameter: 1.9 - 3 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 - 140 °C, Compatible With Wire Base Material: Copper.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 15-13 | |
| Contact material | copper-nickel alloy | |
| Cable cross-section | 1.5-2.5 mm² | |
| Insulation diameter | 1.9-3 mm | |
| contact surface | silver-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | silver-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | US |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
