1-968857-2 | AMP

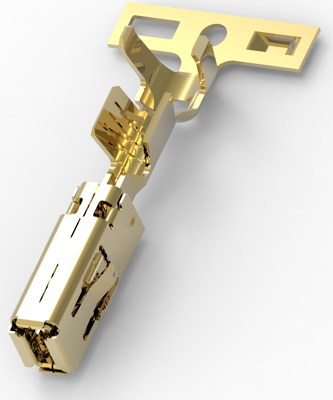

Receptacle, 1.0-2.5 mm², AWG 15-13, crimp connection, gold-plated, 1-968857-2
Order No.: 35P8972
EAN: 4099889639780
MPN:
1-968857-2
Unit Price (€ / pc.)
1.5708 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
18,849.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
12000 pcs.
1.5708 €
Contacts for motor vehicles, 1-968857-2, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Gold (Au), Automotive terminal Termination Method: Crimp, Wire Size: 16 - 14 AWG, Wire Size: 1.5 - 2.5 mm², Wire Size Search: 1.5 mm², 2 mm², 2.5 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, Wire Insulation Diameter: 1.9 - 3 mm, Operating Temperature Range: -40 - 150 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 15-13 | |
| Insulation diameter | 1,9-3 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupfer-Nickel-Legierung | |
| Contact surface Connection range | verzinnt | |
| contact surface | vergoldet | |
| Cable cross-section | 1,0-2,5 mm² |
Download
Logistics
| Country of origin | US |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
