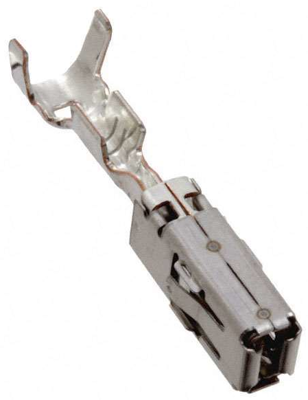

1-968855-3 | AMP
Receptacle, 0.5-1.0 mm², AWG 20-17, crimp connection, silver-plated, 1-968855-3
Unit Price (€ / pc.)
0.1785 € *
Available in 5 Days: 64,000 pcs. - if ordered today
Total Price:
714.00 € *
Price list
Quantity
Price per unit*
4000 pcs.
0.1785 €
8000 pcs.
0.1702 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket contact, 1-968855-3, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Terminal Seal Type: Single Wire Seal (SWS), Crimp Type: F-Crimp, Terminal Type: Receptacle, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Interface Plating: Silver (Ag), Termination Method to Wire & Cable: Crimp, Product Terminates To: Wire, Wire Size: 20 - 17 AWG, Wire Size: 0.5 - 1 mm², Wire Size Search: 0.5 mm², 0.6 mm², 0.75 mm², 1 mm², Wire Size Search: 17 AWG, 18 AWG, 19 AWG, 20 AWG, Wire Insulation Diameter: 1.3 - 2.1 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 - 140 °C, Compatible With Wire Base Material: Copper.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-17 | |
| Contact material | copper-nickel alloy | |
| Cable cross-section | 0.5-1.0 mm² | |
| Insulation diameter | 1.3-2.1 mm | |
| contact surface | silver-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | silver-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | MX |
| Original Packaging | Reel with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
