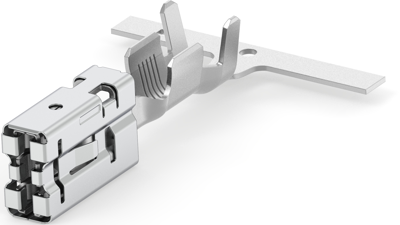

1-967588-1 | AMP
Receptacle, 6.0-10 mm², AWG 10-6, crimp connection, tin-plated, 1-967588-1
Unit Price (€ / pc.)
1.4875 € *
Standard delivery time from the manufacturer is: 17 Weeks
Socket contact, 1-967588-1, TE Connectivity
Receptacle Style: 180°, Sealable: No, Primary Locking Feature: Locking Lance, Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Receptacle, Mating Tab Width: 9.5 mm, Mating Tab Thickness: 1.2 mm, Interface Plating: Tin (Sn), Termination Method: Crimp, Wire Size: 6 - 10 mm², Wire Size Search: 7 AWG, 8 AWG, Wire Size Search: 6 mm², 8 mm², 10 mm², Wire Insulation Diameter: 4.6 - 6.4 mm, Operating Temperature Range: -40 - 130 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 10-6 | |
| Contact material | copper-nickel alloy | |
| Cable cross-section | 6.0-10 mm² | |
| Insulation diameter | 4.6-6.4 mm | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface Connection range | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
