1-963746-1 | AMP

Tab, 1.5-2.5 mm², AWG 17-13, crimp connection, tin-plated, 1-963746-1

Order No.: 34P9858
EAN: 4099889636659
MPN:
1-963746-1

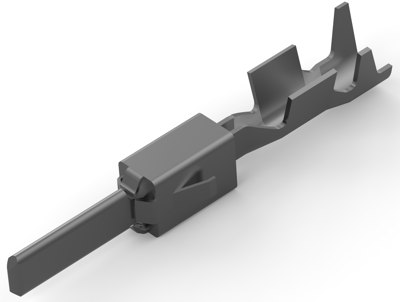

1-963746-1 AMP Crimp Contacts Image 1

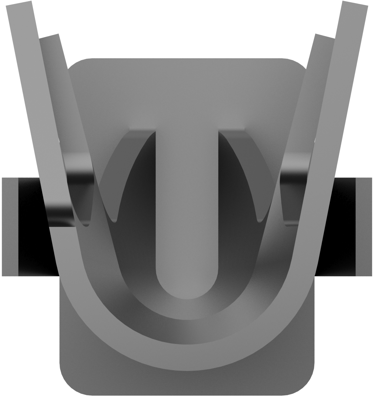

1-963746-1 AMP Crimp Contacts Image 2

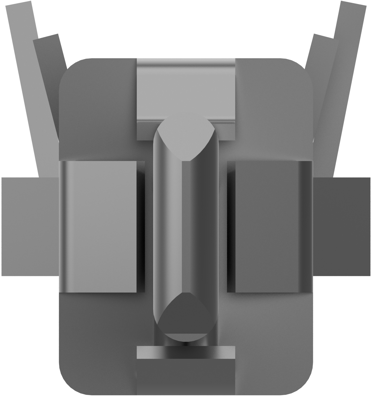

1-963746-1 AMP Crimp Contacts Image 3

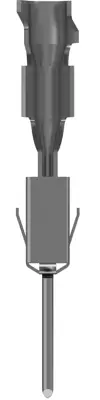

1-963746-1 AMP Crimp Contacts Image 4
1-963746-1 AMP Crimp Contacts Image 5
Image may differ
Unit Price (€ / pc.)
0.4998 € *
Available: 482 pcs.
Available in 5 Days: 4,114 pcs. - if ordered today
Total Price:
2.50 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4998 €
10 pcs.
0.4641 €
25 pcs.
0.4284 €
50 pcs.
0.3927 €
*incl. VAT plus shipping costs
Subject to prior sale

Crimp pin contact, 1-963746-1, AMP

MCP 2.8 standard tab-timer contact with symmetrical, cantilevered stainless steel springs and a connector interface area of 2.79 x 0.81 mm. These MCP 2.8 standard tab-timer contact fit the MCP 2.8 contact system, but can also be used with the Junior Power Timer connector system.

Technical specifications
Filter Property Value
AWG cross-section AWG 17-13
contact surface tin-plated
Version tab
Contact connection crimp connection
Cable cross-section 1.5-2.5 mm²
Insulation diameter 2.1-2.9 mm
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
