1-962916-2 | AMP

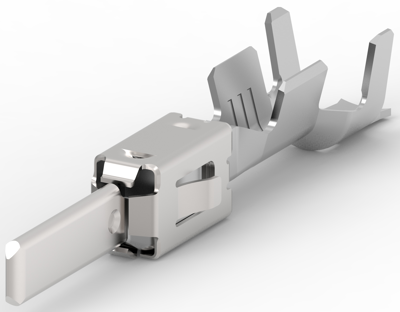

Tab, 1.5-2.5 mm², AWG 15-13, crimp connection, silver-plated, 1-962916-2
Order No.: 36P3373
EAN: 4099889644661
MPN:
1-962916-2
Unit Price (€ / pc.)
0.4046 € *
Standard delivery time from the manufacturer is: 29 Weeks
Contacts for motor vehicles, 1-962916-2, AMP
Receptacle Style: 180°, Sealable: Yes, Primary Locking Feature: Locking Lance, Automotive terminal Wire Type: Copper, Crimp Type: F-Crimp, Terminal & Splice Type: Tab, Mating Tab Width: 2.8 mm, Mating Tab Thickness: 0.8 mm, Automotive terminal Interface Plating: Silver (Ag), Automotive terminal Termination Method: Crimp, Wire Size: 1.5 - 2.5 mm², Wire Size Search: 1.5 mm², 2 mm², 2.5 mm², Wire Size Search: 14 AWG, 15 AWG, 16 AWG, Wire Insulation Diameter: 2.2 - 3 mm, 140 °C, Operating Temperature Range: -40 - 140 °C.
Technical specifications
| contact surface | silver-plated | |
| AWG cross-section | AWG 15-13 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 1.5-2.5 mm² | |
| Version | tab | |
| Contact material | phosphor bronze | |
| Insulation diameter | 2.2-3 mm |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85369040 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
