1-917511-3 | AMP

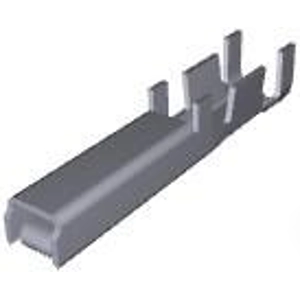

Receptacle, 1.23-2.27 mm², AWG 16-14, crimp connection, 1-917511-3
Unit Price (€ / pc.)
0.9758 € *
Standard delivery time from the manufacturer is: 32 Weeks
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9758 €
10 pcs.
0.8806 €
50 pcs.
0.7854 €
100 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire-to-board connector contact, 1-917511-3, AMP
Connector System: Component-to-Wire, Connector & Contact Terminates To: Wire & Cable, Mating Tab Thickness: 0.64 mm, Contact Type: Receptacle, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 15 A, Wire Size: 16 - 14 AWG, Wire Size: 1.23 - 2.27 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | copper alloy | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Contact surface mating area | gold-plated | |
| Insulation diameter | 2.2-2.8 mm | |
| AWG cross-section | AWG 16-14 | |
| Cable cross-section | 1.23-2.27 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
