1-794609-1 | AMP

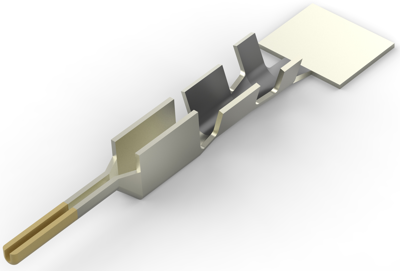

Pin contact, 0.05-0.14 mm², AWG 30-26, crimp connection, gold-plated, 1-794609-1
Unit Price (€ / pc.)
0.0988 € *
Standard delivery time from the manufacturer is: 24 Weeks
Male contact on original reels, 10000 male contact.
For series Micro Mate-N-Lok. Contact material: brass. Insulation Diameter: 0.89 to 1.52 mm.
Technical attributes (type, cross-section, length, contact finish): 1-0794609-1, 0.05 to 0.12mm²² (AWG 30 bis 26), 13,73 mm, 15 µ gold-plated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact | |
| Cable cross-section | 0.05-0.14 mm² | |
| AWG cross-section | AWG 30-26 | |
| Contact connection | crimp connection | |
| Contact material | brass | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| Contact surface Connection range | tin-plated | |
| Insulation diameter | 0.89-1.52 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 10,000 pieces |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
