1-770904-0 | AMP

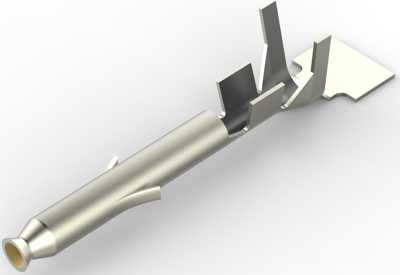

Receptacle, 0.3-0.9 mm², AWG 22-18, crimp connection, 1-770904-0
Unit Price (€ / pc.)
0.3011 € *
Available: 0 pcs.
Available in 5 Days: 4,500 pcs.
Leadtime: 23 Weeks **
Total Price:
1,354.82 € *
Price list
Quantity
Price per unit*
4500 pcs.
0.3011 €
9000 pcs.
0.2951 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power contact, 1-770904-0, TE Connectivity
Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Operating Voltage: 600 VDC, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 11.2 A, Contact Type: Socket, Contact Retention Within Housing: With, Mating Pin Diameter: 1 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 22 - 18 AWG, Wire Size: 0.3 -0.9 mm², Accepts Wire Insulation Diameter Range: 1.5 - 2.39 mm, Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 22-18 | |
| Insulation diameter | 1,5-2,39 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Messing | |
| Contact surface Connection range | verzinnt | |
| Contact surface mating area | vergoldet | |
| Cable cross-section | 0,3-0,9 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
