1-770009-0 | AMP

Pin contact, 0.2-1.0 mm², AWG 24-18, crimp connection, 1-770009-0

Order No.: 35P5252
EAN: 4099889638288
MPN:
1-770009-0

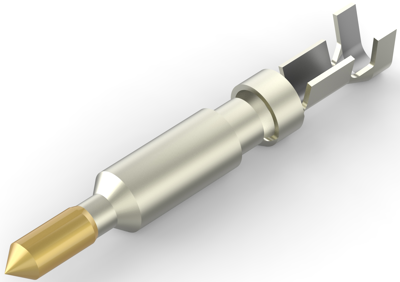

1-770009-0 AMP Crimp Contacts
Image may differ
Unit Price (€ / pc.)
0.4284 € *
Available in 5 Days: 20,000 pcs. - if ordered today
Total Price:
2,142.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.4284 €

Power contact, 1-770009-0, AMP

Power contact Type: Contact, Connector System: Wire-to-Wire, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 600 VAC, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 7 A, Contact Type: Pin, Contact Retention Within Housing: Without, Mating Pin Diameter: 2.18 mm, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Insulation Support: Without, Wire Size: 24 - 18 AWG, Wire Size: 0.2 - 1 mm², Accepts Wire Insulation Diameter Range: 1.02 - 2.54 mm, Operating Temperature Range: -55 - 120 °C.

Technical specifications
Contact surface mating area gold-plated
AWG cross-section AWG 24-18
Contact surface Connection range tin-plated
Contact connection crimp connection
Cable cross-section 0.2-1.0 mm²
Version pin contact
Contact material brass
Insulation diameter 1.02-2.54 mm
Logistics
Country of origin TH
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
