1-745266-1 | AMP

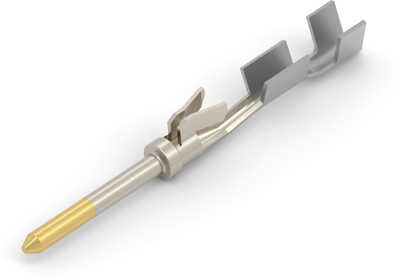

Pin contact, 0.15-0.4 mm², AWG 26-22, crimp connection, 1-745266-1
Order No.: 36P6113
EAN: 4099889647167
MPN:
1-745266-1
Unit Price (€ / pc.)
0.2285 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
9,139.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
40000 pcs.
0.2285 €
D-Sub connector contact, 1-745266-1, AMP
Two Wire Insulation Diameter: .99 mm, Connector System: Cable-to-Cable, Connector & Contact Terminates To: Wire & Cable, PCB Contact Termination Area Plating Material: Tin, Contact Type: Pin, D-Sub Contact Size: 20, Contact Base Material: Phosphor Bronze, Contact Mating Area Plating Material: Gold, Termination Method to Wire & Cable: Insulation Displacement Crimp (IDC), Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 1.37 mm, Wire Size: 26 - 22 AWG, Wire Size: 0.15 - 0.4 mm², Operating Temperature Range: -55 - 105 °C.
Technical specifications
| Version | Stiftkontakt | |
| AWG cross-section | AWG 26-22 | |
| Insulation diameter | 1,37 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Phosphorbronze | |
| Contact surface Connection range | verzinnt | |
| Contact surface mating area | vergoldet | |
| Cable cross-section | 0,15-0,4 mm² |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
