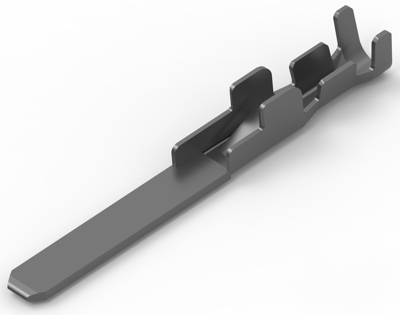

1-179321-2 | AMP
Pin contact, 0.5-1.41 mm², AWG 20-16, crimp connection, gold-plated, 1-179321-2
Order No.: 36P9153
EAN: 4099889648263
MPN:
1-179321-2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1618 € *
Standard delivery time from the manufacturer is: 19 Weeks
Wire-to-board connector contact, 1-179321-2, AMP
Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Operating Voltage: 250 VAC, Contact Base Material: Copper Alloy, Contact Type: Pin,Tab, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 15 A, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 12 mm, Accepts Wire Insulation Diameter Range: 1.6 - 2.8 mm, Wire Size: 20 - 16 AWG, Wire Size: 992.68 - 2802.41 CMA, Wire Size: 0.503 - 1.419 mm², Operating Temperature Range: -30 - 105 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact | |
| Cable cross-section | 0.5-1.41 mm² | |
| AWG cross-section | AWG 20-16 | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface mating area | gold-plated | |
| contact surface | gold-plated | |
| Contact surface Connection range | gold-plated | |
| Insulation diameter | 1.6-2.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Electrical equipment take-back |  |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
