1-163082-0 | AMP

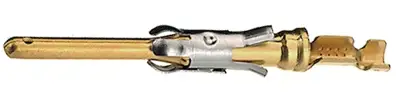

Pin contact, 0.75-1.5 mm², AWG 18-16, crimp connection, gold-plated, 1-163082-0
Unit Price (€ / pc.)
1.3685 € *
Available in 5 Days: 36,888 pcs. - if ordered today
Total Price:
1.37 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3685 €
10 pcs.
1.2495 €
50 pcs.
1.1186 €
100 pcs.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin contact, 1-163082-0, AMP
Power Contact Type: Contact, Connector & Contact Terminates To: Wire & Cable, Test Current: 13 A, Contact Mating Area Plating Material: Precious Metal, Contact Current Rating (Max): 13 A, Contact Type: Pin, Contact Retention Within Housing: With, Mating Pin Diameter: 1.57 mm, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Wire Size: 18 - 16 AWG, Wire Size: 0.75 - 1.5 mm², Accepts Wire Insulation Diameter Range: 2 - 2.5 mm, Operating Temperature Range: -55 - 150 °C.
Technical specifications
| contact surface | gold-plated | |
| AWG cross-section | AWG 18-16 | |
| Contact surface Connection range | tin-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.75-1.5 mm² | |
| Version | pin contact | |
| Contact material | brass | |
| Insulation diameter | 2-2.5 mm |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
