1-150656-1 | AMP

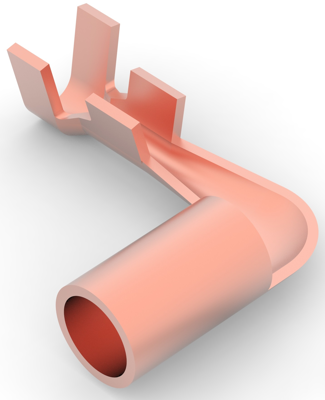

Receptacle, 0.5-1.3 mm², AWG 20-16, crimp connection, tin-plated, 1-150656-1
Order No.: 35P2549
EAN: 4099889636956
MPN:
1-150656-1
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 24 Weeks
Crimp wire pins, tabs and ferrules, 1-150656-1, AMP
Crimp Wire Pin, Tab & Ferrule Barrel Type: Open Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Discrete Wire, Insulated: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Unplated, Crimp Wire Pin, Tab & Ferrule Terminal Type: Shur-Plug, Crimp Wire Pin, Tab & Ferrule Pin Diameter: 3.96 mm, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Flag, Wire Insulation Support: With, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.6 mm, Accepts Wire Insulation Diameter Range: 2.5 - 3.6 mm, Wire Size: 20 - 16 AWG, Wire Size: 0.5 - 1.3 mm², Wire Size: 1021 - 2582 CMA Heavy Duty: No, Packaging Quantity: 2000, Crimp Wire Pin, Tab & Ferrule Packaging Method: Reel, Comment: MQC-Application-Reeling,Reverse Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-16 | |
| Contact material | phosphor bronze | |
| Cable cross-section | 0.5-1.3 mm² | |
| Insulation diameter | 2.5-3.6 mm | |
| contact surface | tin-plated | |
| Version | receptacle | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
