1-104480-3 | AMP

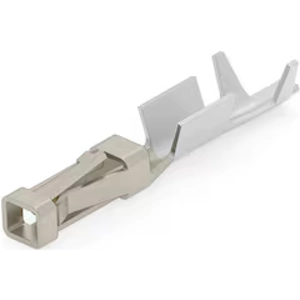

Receptacle, 0.12-0.4 mm², AWG 26-22, crimp connection, gold-plated, 1-104480-3
Unit Price (€ / pc.)
0.1297 € *
Available: 0 pcs.
Leadtime: 31 Weeks **
Total Price:
7,782.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
60000 pcs.
0.1297 €
Wire-to-board connector contact, 1-104480-3, AMP
Applied Pressure: Standard, Connector System: Wire-to-Board, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 300 VAC, Contact Base Material: Copper Alloy C7025, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Contact Current Rating (Max): 3 A, Termination Method to Wire & Cable: Crimp, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 0.64 - 1.52 mm, Wire Size: 26 - 22 AWG, Wire Size: 236.823 - 789.41 CMA, Wire Size: 0.12 - 0.4 mm², Operating Temperature Range: -65 - 105 °C.
Technical specifications
| Version | Buchsenkontakt | |
| AWG cross-section | AWG 26-22 | |
| Insulation diameter | 0,64-1,52 mm | |
| Contact connection | Crimpanschluss | |
| Contact material | Kupferlegierung | |
| Contact surface mating area | vergoldet | |
| contact surface | vergoldet | |
| Cable cross-section | 0,12-0,4 mm² |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
