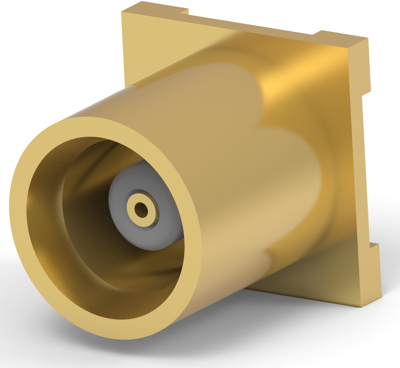

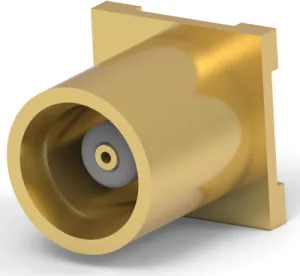

RF Connector, 966851-1, AMP
RF Interface: MCX, RF Connector Style: Jack, Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Mounting Legs: 4, Number of Positions: 1, PCB Mount Orientation: Vertical, Number of Coaxial Contacts: 1, Impedance: 50 Ω, Body Shape: Square, Body Material: Copper Zinc, Body Plating Material: Gold, Body Underplating Material: Nickel, RF Connector Center Contact Plating Thickness, RF Connector Center Contact Plating Material: Gold, RF Connector Center Contact Material: Copper Zinc, Termination Method to Printed Circuit Board: Surface Mount, Termination Post & Tail Length: .2 mm, PCB Mount Retention: Without, RF Connector Coupling Mechanism: Snap-On, Connector Mounting Type: Board Mount, RF Contact Captivation Method: Mechanical, Detent: Without, RF Connector Mated Outer Diameter (Approximate): 5 mm, Height Above PC Board: 6 mm, Operating Temperature Range: -65 – 165 °C, Operating Frequency: 6 GHz, Packaging Method: Reel, Dielectric Material: PTFE
