6274291-1 | AMP

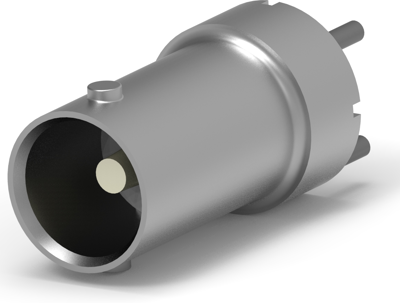

BNC panel socket 75 Ω, solder connection, straight, 6274291-1
Unit Price (€ / pc.)
6.7592 € *
Available in 5 Days: 431 pcs. - if ordered today
RF Coaxial connector, 6274291-1, AMP
The 6274291-1 is a BNC connector, 75 Ohm with bayonet locking coupling and provides highly reliable, quick connect/disconnect coaxial connections. In addition to a variety of crimp type terminations, connectors are furnished in field replaceable and twist-on styles. This connector is designed around the mil-specifications, but utilize low-cost materials, offering comparable mechanical and electrical performance.
Features
- Fully intermateable with comparable BNC UG/U connectors
- Twist-on connectors require no special tooling for application to the cable
- Choice of different dielectrics
- Low VSWR
Applications
- Broadband, networking, signal management
- Video distribution, including HDTV
- Industry standard interface, commercial and military aerospace
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| Impedance | 75 Ω | |
| Contact material | beryllium copper | |
| Product type | panel socket | |
| Connector | BNC | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
