5413879-2 | AMP

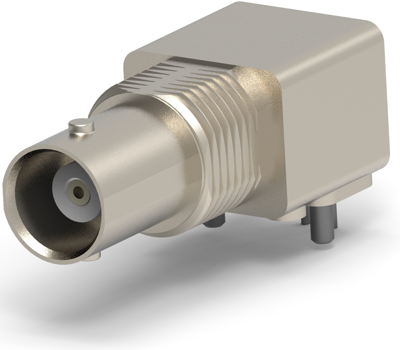

BNC socket 50 Ω, solder connection, angled, 5413879-2
Unit Price (€ / pc.)
8.0444 € *
Standard delivery time from the manufacturer is: 20 Weeks
RF Coaxial connector, 5413879-2, AMP
The 5413879-2 is a BNC connector, 50 Ohm with bayonet locking coupling and provides highly reliable, quick connect/disconnect coaxial connections. In addition to a variety of crimp type terminations, connectors are furnished in field replaceable and twist-on styles. This connector is designed around the mil-specifications, but utilize low-cost materials, offering comparable mechanical and electrical performance.
Features
- Fully intermateable with comparable BNC UG/U connectors
- Twist-on connectors require no special tooling for application to the cable
- Choice of different dielectrics
- Low VSWR
Applications
- Broadband, networking, signal management
- Video distribution, including HDTV
- Industry standard interface, commercial and military aerospace
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connector | BNC | |
| Contact connection | solder connection | |
| Impedance | 50 Ω | |
| Design | angled | |
| Version | socket | |
| Contact material | phosphor bronze |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
