5227661-1 | AMP

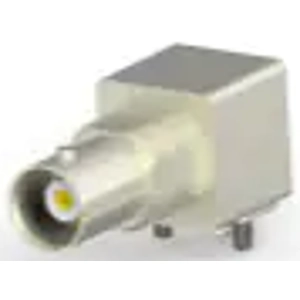

BNC socket 50 Ω, solder connection, angled, 5227661-1
Unit Price (€ / pc.)
8.2110 € *
Available: 105 pcs.
Available in 5 Days: 702 pcs. - if ordered today
Total Price:
8.21 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2110 €
10 pcs.
7.2114 €
70 pcs.
6.5331 €
280 pcs.
6.1404 €
1015 pcs.
5.7834 €
*incl. VAT plus shipping costs
Subject to prior sale
RF Coaxial connector, 5227661-1, AMP
The 5227661-1 is a BNC connector, 50 Ohm with bayonet locking coupling and provides highly reliable, quick connect/disconnect coaxial connections. In addition to a variety of crimp type terminations, connectors are furnished in field replaceable and twist-on styles. This connector is designed around the mil-specifications, but utilize low-cost materials, offering comparable mechanical and electrical performance.
Features
- Fully intermateable with comparable BNC UG/U connectors
- Twist-on connectors require no special tooling for application to the cable
- Choice of different dielectrics
- Low VSWR
Applications
- Broadband, networking, signal management
- Video distribution, including HDTV
- Industry standard interface, commercial and military aerospace
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | angled | |
| Version | socket | |
| Contact connection | solder connection | |
| Contact material | phosphor bronze | |
| Impedance | 50 Ω | |
| Connector | BNC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
| Original Packaging | Bar with 35 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
