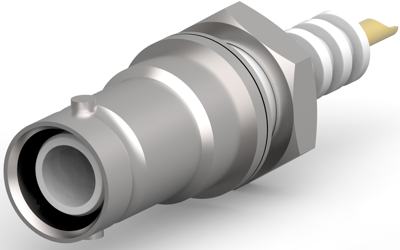

RF Connector, 51494-2, AMP
RF Interface: SHV, RF Connector Style: Jack, Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 1, Number of Coaxial Contacts: 1, Cable Connector Orientation: Straight, Body Material: Brass, Body Plating Material: Nickel, RF Connector Center Contact Underplating Material: Nickel, RF Connector Center Contact Plating Material: Gold, RF Connector Center Contact Material: Brass, Termination Method to Wire & Cable: Solder, RF Connector Coupling Mechanism: Threaded, Connector Mounting Type: Panel Mount, RF Contact Captivation Method: Mechanical, Detent: Without, Panel Thickness (Recommended): 4.75 mm, RF Connector Mated Outer Diameter (Approximate): 12.7 mm, Operating Temperature Range: -65 – 200 °C, Packaging Method: Carton, Dielectric Material: PTFE
