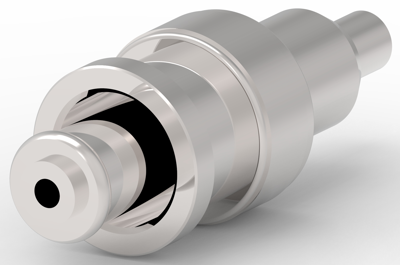

5051426-5 | AMP

SHV plug, RG-59, RG-59A, RG-59B, crimp connection, straight, 5051426-5

Order No.: 37P2116
EAN: 4099889829020
MPN:
5051426-5
Series: SVH
5051426-5 AMP Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
47.7785 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
47,778.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
47.7785 €

RF Connector, 5051426-5, TE Connectivity

RF Interface: SHV, RF Connector Style: Plug, Compatible With RF Cable Type: Belden 9209,Belden 9269,Belden 9291,RG 124,RG 140,RG 210,RG 59,RG 59A,RG 59B,RG 62,RG 62A,RG 62B, Connector System: Cable-to-Board, Sealable: Yes, Number of Positions: 1, Number of Coaxial Contacts: 1, Cable Connector Orientation: Straight, Body Material: Brass, Body Material Finish: Bright, Body Plating Material: Nickel, Crimp Type: Dual, RF Connector Center Contact Plating Material: Gold, RF Connector Center Contact Material: Beryllium Copper, Termination Method to Wire & Cable: Crimp, RF Connector Coupling Mechanism: Bayonet, Connector Mounting Type: Cable Mount (Free-Hanging), RF Contact Captivation Method: Mechanical, Detent: With, RF Connector Mated Outer Diameter (Approximate): 14.43 mm, Operating Temperature Range: -55 – 155 °C, Operating Frequency: 0.3 GHz, Packaging Method: Carton, Dielectric Material: PTFE

Technical specifications
Filter Property Value
Cable Group RG-59, RG-59A, RG-59B
Connector SHV
Contact connection crimp connection
Version plug
Design straight
Contact material beryllium copper
Logistics
Property Value
Country of origin CN
Customs tariff number 85366910
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
