413990-2 | AMP

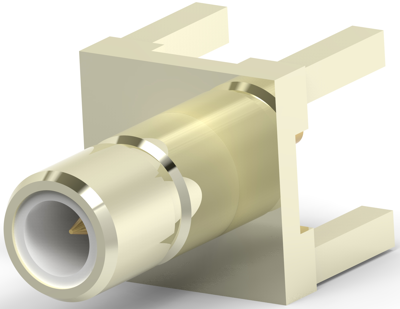

SMB socket 50 Ω, solder connection, straight, 413990-2

Order No.: 36P9824
EAN: 4099889828764
MPN:
413990-2
Series: SMB
413990-2 AMP Coaxial Connectors
Image may differ
Unit Price (€ / pc.)
7.6517 € *
Available in 5 Days: 235 pcs. - if ordered today
Total Price:
191.29 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
7.6517 €

RF Coaxial connector, 413990-2, AMP

The 413990-2 is an SMB connector, 50 Ohm. This product is ideally suited for circuit miniaturization and is offered in a wide range of configurations including plugs, right-angle plugs, jacks, bulkhead jacks and adapters, as well as printed circuit board and solder jacks. Termination costs are kept to a minimum using plugs and jacks with a crimp center contact and hex crimp outer braid.

Features

  • Snap-fit coupling for quick connect/disconnect
  • Choice of Commercial or High Rel Connectors
  • Fast easy cable assembly
  • Low VSWR
Technical specifications
Filter Property Value
Impedance 50 Ω
Design straight
Connector SMB
Contact material brass
Contact connection solder connection
Version socket
Logistics
Property Value
Customs tariff number 85366990
Country of origin TH
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
