413990-1 | AMP

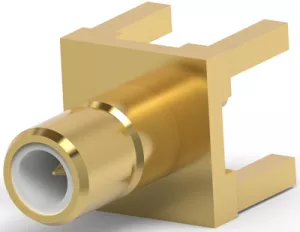

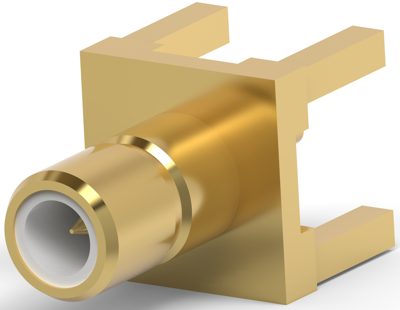

SMB panel socket 50 Ω, solder connection, straight, 413990-1
Unit Price (€ / pc.)
4.5577 € *
Standard delivery time from the manufacturer is: 7 Weeks
RF Coaxial connector, 413990-1, AMP
The 413990-1 is an SMB connector, 50 Ohm. This product is ideally suited for circuit miniaturization and is offered in a wide range of configurations including plugs, right-angle plugs, jacks, bulkhead jacks and adapters, as well as printed circuit board and solder jacks. Termination costs are kept to a minimum using plugs and jacks with a crimp center contact and hex crimp outer braid.
Features
- Snap-fit coupling for quick connect/disconnect
- Choice of Commercial or High Rel Connectors
- Fast easy cable assembly
- Low VSWR
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| Impedance | 50 Ω | |
| Contact material | brass | |
| Product type | panel socket | |
| Connector | SMB | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
