1060985-1 | AMP

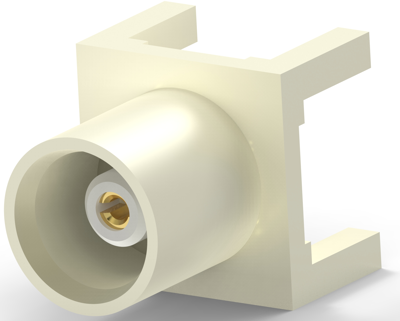

MCX panel socket 50 Ω, solder connection, straight, 1060985-1
Unit Price (€ / pc.)
5.7477 € *
Available in 5 Days: 1,550 pcs. - if ordered today
Total Price:
5.75 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7477 €
10 pcs.
5.3312 €
25 pcs.
4.9742 €
50 pcs.
4.5220 €
*incl. VAT plus shipping costs
Subject to prior sale
RF Coaxial connector, 1060985-1, AMP
The 1060985-1 is a MCX connector vertical jack receptacle, PC board. This product offers an excellent blend of size, durability and performance for emerging applications in GPS, automotive and wireless communications. Also this connector is mechanically robust with beryllium copper spring fingers rated at a minimum of 500 mating cycles. The snap-on interface facilitates assembly, eliminating the need for a threaded connection, and ensuring full engagement.
Features
- Snap-on interface facilitates assembly
- Surface mount tape and reel for high volume
- Conforms to CECC interface specifications for MCX
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| Impedance | 50 Ω | |
| Contact material | beryllium copper | |
| Product type | panel socket | |
| Connector | MCX | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
