1057780-1 | AMP

TNC socket 50 Ω, solder connection, straight, 1057780-1

Order No.: 36P6618
EAN: 4099889827996
MPN:
1057780-1
3152 1201 10
Series: TNC

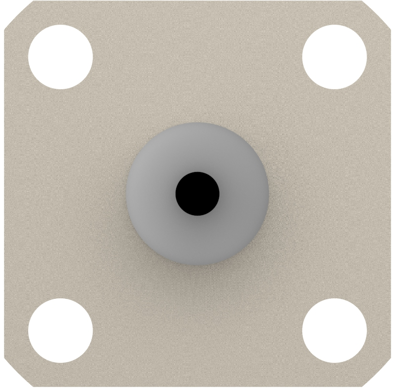

1057780-1 AMP Coaxial Connectors Image 1

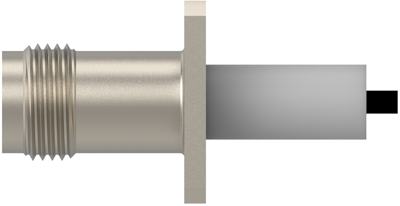

1057780-1 AMP Coaxial Connectors Image 2

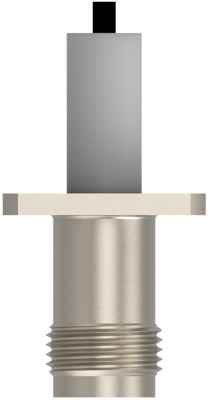

1057780-1 AMP Coaxial Connectors Image 3

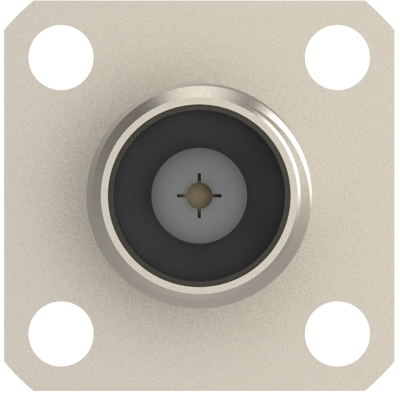

1057780-1 AMP Coaxial Connectors Image 4

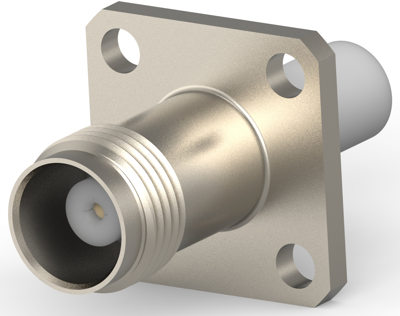

1057780-1 AMP Coaxial Connectors Image 5
Image may differ
Unit Price (€ / pc.)
23.1217 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
23,121.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
23.1217 €

RF Coaxial connector, 1057780-1, AMP

The 1057780-1 is an TNC flange mount receptacle connector, 50 Ohm. This product provides low noise levels and optimum stability, and can withstand the shock and vibration often present in hostile environments. Also features numerous styles including cable plugs and jacks, adapters and printed circuit board connectors.

Features

  • Tarnish resistant nickel finish
  • Choice of dielectric materials
  • Universal cable termination common to all configurations
  • Low application cost
Technical specifications
Filter Property Value
Connector TNC
Contact connection solder connection
Impedance 50 Ω
Design straight
Version socket
Contact material beryllium copper
Logistics
Property Value
Customs tariff number 85366990
Country of origin US
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
