1052634-1 | AMP
SMA flange socket 50 Ω, screw connection, straight, 1052634-1
Unit Price (€ / pc.)
14.7322 € *
Available in 5 Days: 200 pcs. - if ordered today
Total Price:
220.98 € *
Price list
Quantity
Price per unit*
15 pcs.
14.7322 €
35 pcs.
14.4585 €
*incl. VAT plus shipping costs
Subject to prior sale

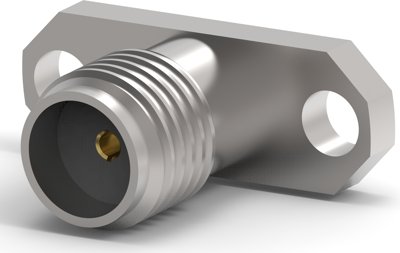

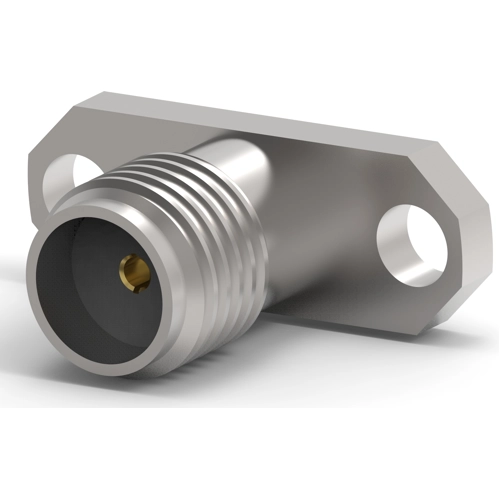

RF Coaxial connector, 1052634-1, AMP
The 1052634-1 is a field replaceable hermetic launcher. This product offers stainless steel bodies, as well as nonferrous metals.
Features
- Performance to 12.4 GHz and beyond
- Uses industry standard crimp tools and processes
- Corrosion resistant
- Non-magnetic white bronze plating
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connector | SMA | |
| Impedance | 50 Ω | |
| Design | straight | |
| Contact material | beryllium copper | |
| Contact connection | screw connection | |
| Product type | flange socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
