1052422-1 | AMP

SMA socket 50 Ω, solder connection, straight, 1052422-1

Order No.: 37P2723
EAN: 4099889830200
MPN:
1052422-1
2052 0000 02
Series: SMA

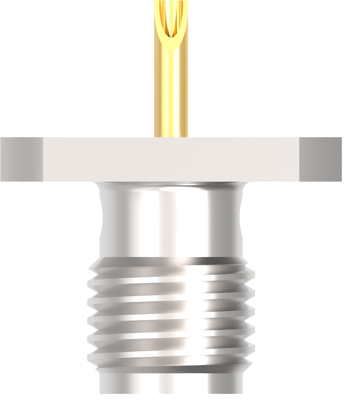

1052422-1 AMP Coaxial Connectors Image 1

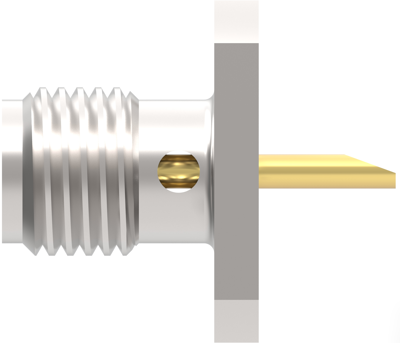

1052422-1 AMP Coaxial Connectors Image 2

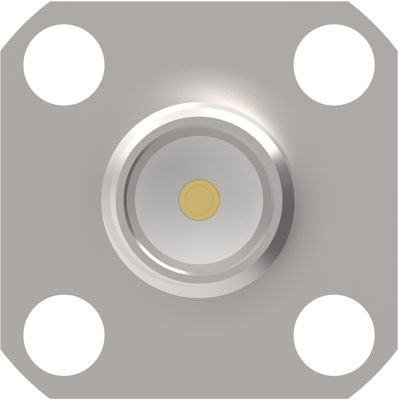

1052422-1 AMP Coaxial Connectors Image 3

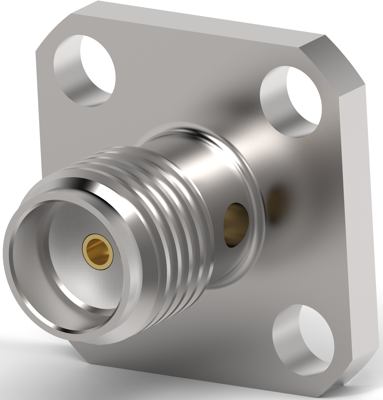

1052422-1 AMP Coaxial Connectors Image 4

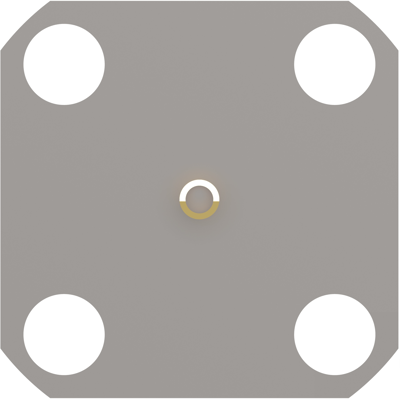

1052422-1 AMP Coaxial Connectors Image 5
Image may differ
Unit Price (€ / pc.)
16.6124 € *
Standard delivery time from the manufacturer is: 30 Weeks
Total Price:
16.61 € *
Price list
Quantity
Price per unit*
1 pcs.
16.6124 €
10 pcs.
15.2796 €
50 pcs.
13.7564 €
100 pcs.
12.3760 €
*incl. VAT plus shipping costs
Subject to prior sale

RF Coaxial connector, 1052422-1, AMP

The 1052422-1 is a panel mount, solder pot terminal. This product offers stainless steel bodies, as well as nonferrous metals.

Features

  • Performance to 12.4 GHz and beyond
  • Uses industry standard crimp tools and processes
  • Corrosion resistant
  • Non-magnetic white bronze plating
Technical specifications
Connector SMA
Contact connection solder connection
Version socket
Design straight
Contact material beryllium copper
Impedance 50 Ω
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
