1-5225661-6 | AMP

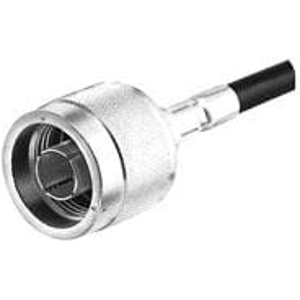

N plug 50 Ω, Belden 8214, crimp connection, straight, 1-5225661-6
Order No.: 71P2259
EAN: 4099891615130
MPN:
1-5225661-6
Unit Price (€ / pc.)
36.2593 € *
Available in 5 Days: 503 pcs. - if ordered today
Total Price:
217.56 € *
Price list
Quantity
Price per unit*
6 pcs.
36.2593 €
13 pcs.
35.5810 €
*incl. VAT plus shipping costs
Subject to prior sale
Coaxial connector, 1-5225661-6, AMP
The 1-5225661-6 is highly suited for critical applications and environments. This product can withstand shock and vibration to assure a low noise level and has a constant impedance of 50 ohms. It also features a captive center contact and provides excellent performance at frequencies.
Features
- Impedance matching crimps
- Superior cable retention
- Broad band performance - low VSWR
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | N | |
| Cable Group | Belden 8214 | |
| Design | straight | |
| Contact material | brass | |
| Contact connection | crimp connection | |
| Version | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
