1058083-1 | AMP

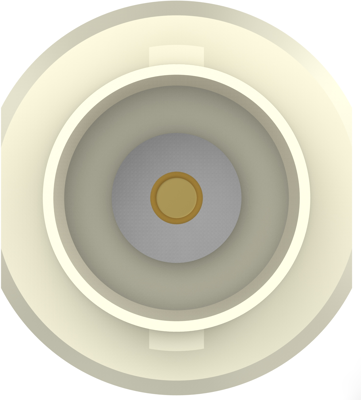

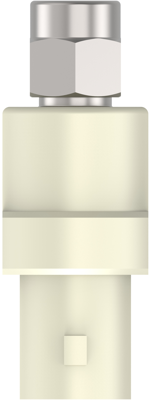

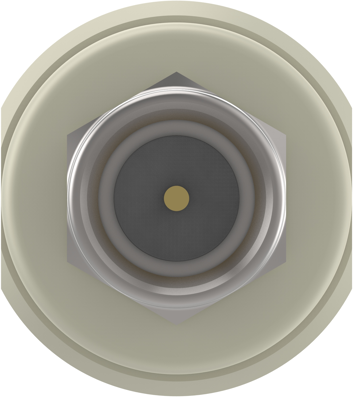

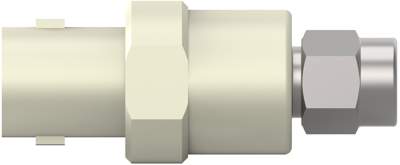

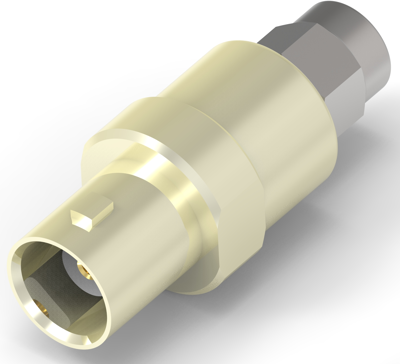

Coaxial adapter, 50 Ω, OSM plug to BNC socket, straight, 1058083-1
Order No.: 37P2014
EAN: 4099889849615
MPN:
1058083-1
3282 2241 00
Unit Price (€ / pc.)
99.484 € *
Available in 5 Days: 12 pcs. - if ordered today
Between Series Adapters, 1058083-1, AMP
Side A Interface: BNC, Side A Gender: Jack, Side B Interface: OSM, Side B Gender: Plug, Connector System: Wire-to-Wire, Number of Positions: 1, Impedance: 50 Ω, Frequency: 4 GHz, Body Plating Material: Nickel, RF Connector Center Contact Material: Beryllium Copper, Coupling Nut Material: Stainless Steel, Connector Mounting Type: Bulkhead, Operating Temperature Range: -65 – 125 °C, Circuit Application: Power & Signal, Dielectric Material: TFE Fluorocarbon
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | OSM plug | |
| Connector (exit) | BNC socket | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
