1053635-1 | AMP

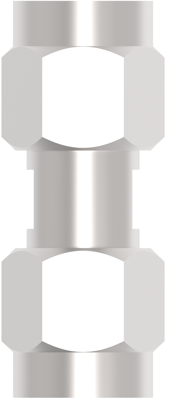

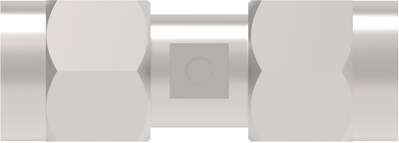

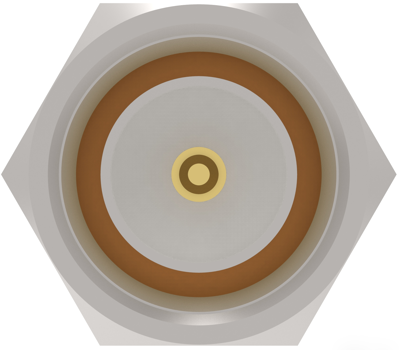

Coaxial adapter, 50 Ω, OSM plug to OSM plug, straight, 1053635-1
Order No.: 37P2752
EAN: 4099889849851
MPN:
1053635-1
2081 0000 02
Unit Price (€ / pc.)
37.6278 € *
Available in 5 Days: 1,469 pcs. - if ordered today
Total Price:
37.63 € *
Price list
Quantity
Price per unit*
1 pcs.
37.6278 €
2 pcs.
35.2002 €
5 pcs.
33.0701 €
10 pcs.
30.7377 €
*incl. VAT plus shipping costs
Subject to prior sale
In-Series Adapters, 1053635-1, AMP
Isolated Ground: No, RF Connector Type: SMA, Connector System: Cable-to-Cable, Sealable: No, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 1, Impedance: 50 Ω, Frequency: 18 GHz, Body Insulation: Without, Body Angle: Straight, RF Connector Contact Configuration: Captivated Contacts, RF Connector Center Contact Material: Beryllium Copper, RF Connector Center Contact Plating Material: Gold, RF Contact Captivation Method: Epoxy, Connector Mounting Type: Bulkhead, Length: 22.2 mm, Operating Temperature Range: -65 – 165 °C, Circuit Application: Power & Signal, Packaging Method: Bag, Dielectric Material: TFE Fluorocarbon
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 50 Ω | |
| Connector | OSM plug | |
| Connector (exit) | OSM plug | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
