Unit Price (€ / pc.)
8.9012 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
8.90 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9012 €
10 pcs.
8.2705 €
25 pcs.
7.7112 €
50 pcs.
7.0091 €
*incl. VAT plus shipping costs
Subject to prior sale

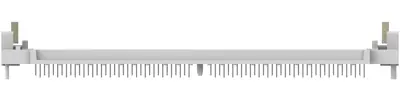

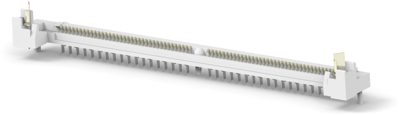

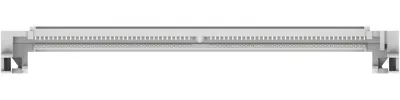

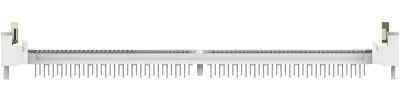

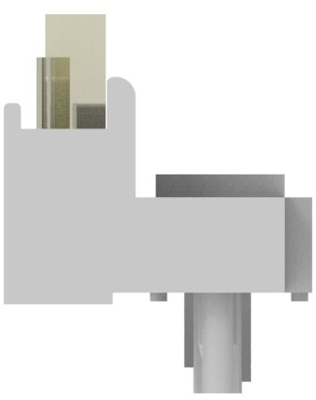

SIMM Sockets, 5822134-3, TE Connectivity
Center Post: With, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Product Type: Socket, Center Key: None, Module Orientation: 22°, Number of Positions: 72, Number of Rows: 1, Retention Post Location: Center, Contact Base Material: Phosphor Bronze, Contact Current Rating (Max): 1 A, Socket Type: Memory Card, Insertion Style: Cam-In, Termination Post Length: 2.92 mm,3.56 mm, Polarization: Left, PCB Mounting Style: Through Hole - Solder, Connector Mounting Type: Board Mount, Centerline (Pitch): 1.27 mm, Housing Material: LCP (Liquid Crystal Polymer), Center Retention Hole Diameter: 1.63 mm, Operating Temperature Range: -55 – 105 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Quantity: 26
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connector | SIMM | |
| Version | socket | |
| Grid | 2.54 mm | |
| Pin number | 72 pole | |
| Number of rows | 1 | |
| Type of locking | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
