8-55858-3 | AMP

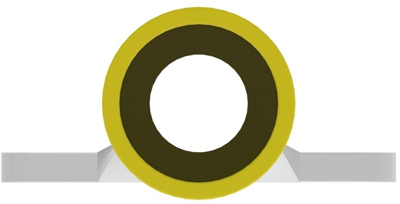

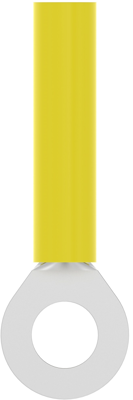

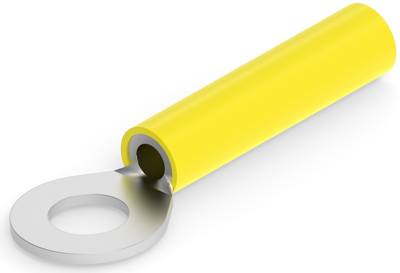

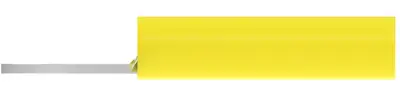

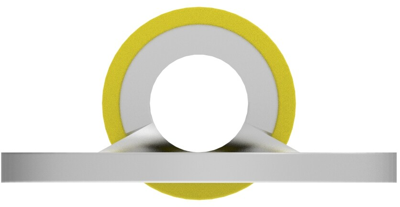

Insulated ring cable lug, 2.62-6.64 mm², AWG 12 to 10, 6.35 mm, M6, yellow, 8-55858-3
Order No.: 39P3118
EAN: 4099889591088
MPN:
8-55858-3
Unit Price (€ / pc.)
2.1777 € *
Standard delivery time from the manufacturer is: 16 Weeks
Cable lug, 8-55858-3, AMP
Shape Description: RING-088, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: Yes, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 1000 V,600 V, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 6.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 6.35 mm, Tongue Thickness: 1.07 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 125 °C, Heavy Duty: Yes, Government Qualified: No, Packaging Quantity: 25, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 to 10 | |
| Hole diameter | 6.35 mm | |
| Colour | yellow | |
| Thread size | M6 | |
| Material Insulation | PO | |
| max. operating temperature | 125 °C | |
| Cable cross-section | 2.62-6.64 mm² | |
| Material | tin | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
