8-55854-2 | AMP

Insulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 8 mm, M8, blue, 8-55854-2

Order No.: 39P3122
EAN: 4099889591101
MPN:
8-55854-2

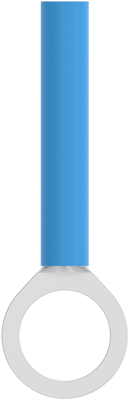

8-55854-2 AMP Cable Lugs Image 1

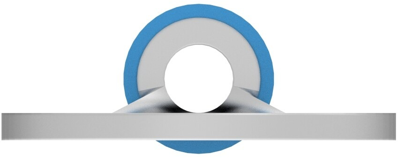

8-55854-2 AMP Cable Lugs Image 2

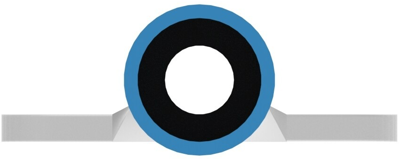

8-55854-2 AMP Cable Lugs Image 3

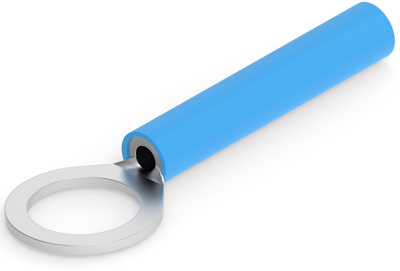

8-55854-2 AMP Cable Lugs Image 4
8-55854-2 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
2.3205 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
2,320.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
2.3205 €

Ring tongue terminal, 8-55854-2, AMP

Ring tongue terminal, Wire size: 16 - 14 AWG, Wire size: 1.04 - 2.62 mm², Wire size: 2050 - 5180 CMA, Stud size: 5/16, M8

Technical specifications
Colour blue
Isolated Yes
AWG cross-section AWG 16 to 14
Hole diameter 8 mm
Cable cross-section 1.04-2.62 mm²
Version ring cable lug
Material tin
max. operating temperature 125 °C
Material Insulation PO
Thread size M8
Logistics
Country of origin TW
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
