8-55851-2 | AMP

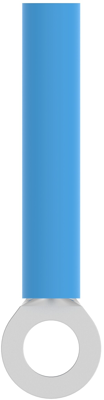

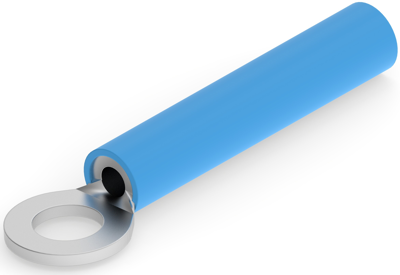

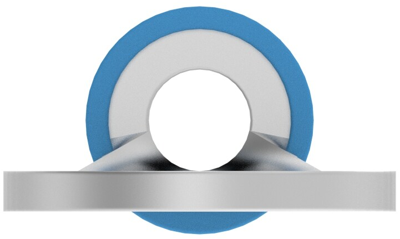

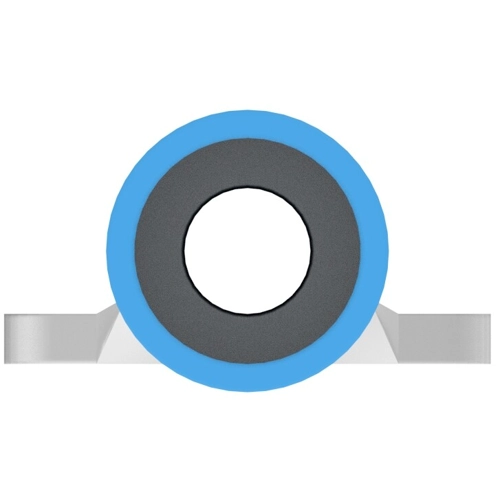

Name: Insulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 4.17 mm, M4, blue, 8-55851-2
Brand: AMP
SKU: 72P1962
Availability: InStock

Insulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 4.17 mm, M4, blue, 8-55851-2

Order No.: 72P1962

EAN: 4099891605483

MPN:

8-55851-2

Image may differ

Key Specification:

Version ring cable lug

Cable cross-section 1.04-2.62 mm²

AWG cross-section AWG 16 to 14

Isolated Yes

Colour blue

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.5347 € *

Available in 5 Days: 1,081 pcs. - if ordered today

Total Price:

202.78 € *

Price list

Quantity

Price per unit*

80 pcs.

2.5347 €

200 pcs.

2.5228 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Ring cable lug, 8-55851-2, AMP

Ring terminal & Spade terminal, Ring tongue, 16 - 14 AWG Wire size, 1.04 - 2.62 mm² Wire size, 2050 - 5180 CMA Wire size, Stud size #8 / M4.

Technical specifications

Filter	Property	Value
	AWG cross-section	AWG 16 to 14
	Hole diameter	4.17 mm
	Colour	blue
	shrinkable tubing	Yes
	Thread size	M4
	Material Insulation	PO
	max. operating temperature	125 °C
	Cable cross-section	1.04-2.62 mm²
	Material	copper, tin-plated
	Version	ring cable lug
	Isolated	Yes
