8-53941-1 | AMP

Insulated ring cable lug, 1.25-2.0 mm², AWG 16, 4.34 mm, M4, blue, 8-53941-1

Order No.: 39P3622
EAN: 4099889594614
MPN:
8-53941-1
Series: PIDG

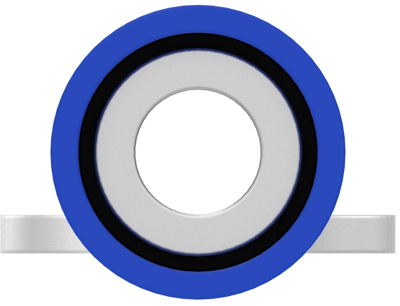

8-53941-1 AMP Cable Lugs Image 1

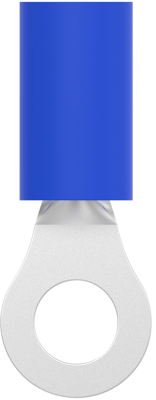

8-53941-1 AMP Cable Lugs Image 2

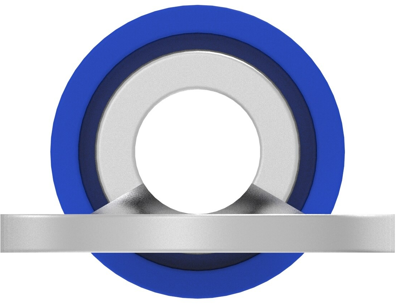

8-53941-1 AMP Cable Lugs Image 3

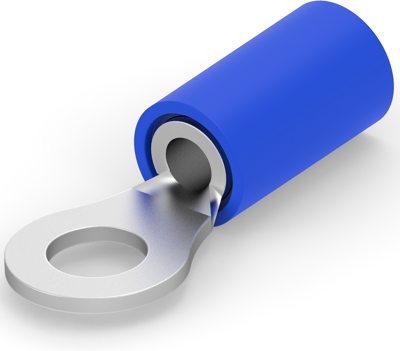

8-53941-1 AMP Cable Lugs Image 4

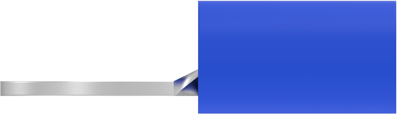

8-53941-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.8326 € *
Available in 5 Days: 1,490 pcs. - if ordered today
Total Price:
1.83 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8326 €
10 pcs.
1.6660 €
50 pcs.
1.4994 €
100 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 8-53941-1, AMP

Shape Description: RING-041, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Insulation Sleeve Color: Blue, Ring & Spade Plating Material: Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .78 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Version ring cable lug
max. operating temperature 105 °C
Colour blue
Cable cross-section 1.25-2.0 mm²
AWG cross-section AWG 16
Material copper, tin-plated
Hole diameter 4.34 mm
Isolated Yes
Material Insulation PA
Thread size M4
Logistics
Property Value
Country of origin TW
Customs tariff number 85369040
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
