8-52941-2 | AMP

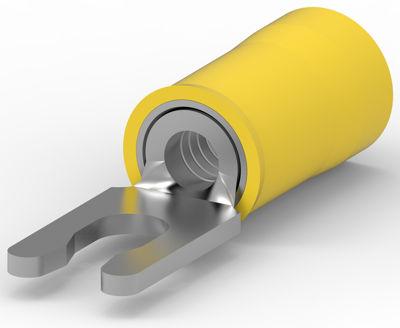

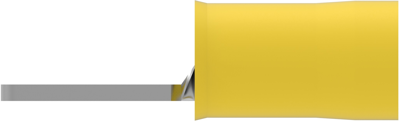

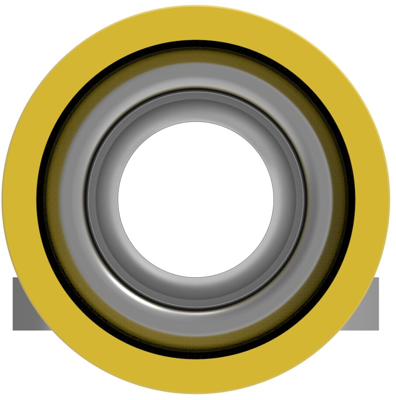

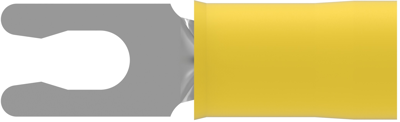

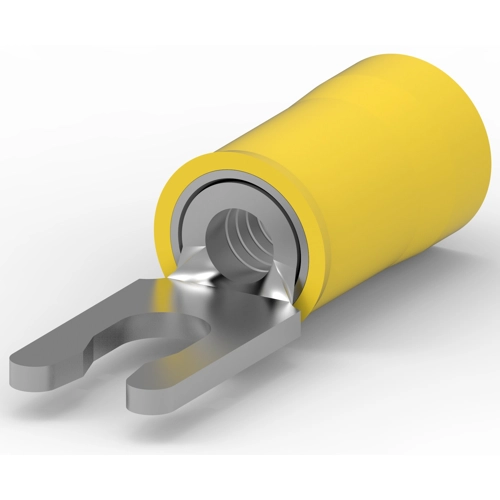

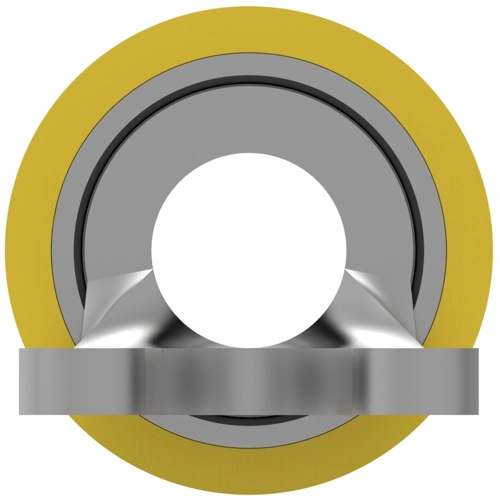

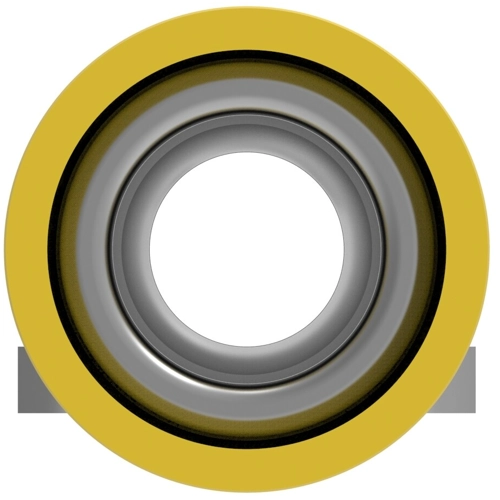

Insulated forked cable lug, 3-6 mm², AWG 12 to 10, 3.56 mm, M3.5, yellow, 8-52941-2
Unit Price (€ / pc.)
0.8687 € *
Available in 5 Days: 255 pcs. - if ordered today
Spade cable lug, 8-52941-2, AMP
Terminal, P.I.D.G, Spring spade, Wire size 12-10 AWG, Insulation support, Closed, Straight, Copper, Tin, Loose piece.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 to 10 | |
| Hole diameter | 3.56 mm | |
| Colour | yellow | |
| shrinkable tubing | Yes | |
| Thread size | M3.5 | |
| Material Insulation | PA | |
| Cable cross-section | 3-6 mm² | |
| Material | phosphor bronze, tin-plated | |
| Version | forked cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
