8-52929-1 | AMP

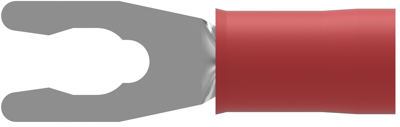

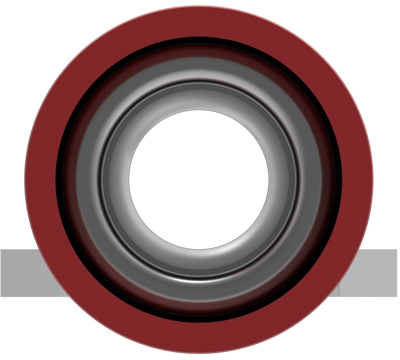

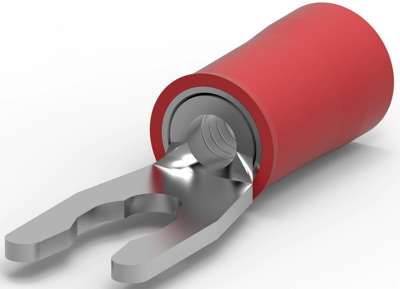

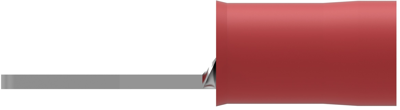

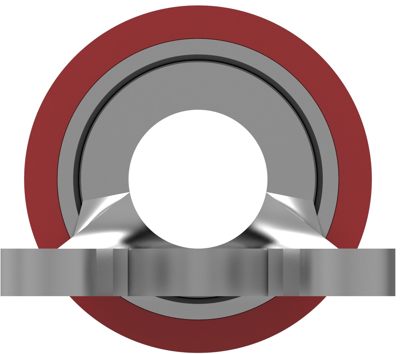

Insulated forked cable lug, 0.3-1.42 mm², AWG 22 to 16, M3.5, red, 8-52929-1
Unit Price (€ / pc.)
1.2138 € *
Available in 5 Days: 6,900 pcs. - if ordered today
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
5 pcs.
1.2138 €
10 pcs.
1.1186 €
25 pcs.
1.0472 €
50 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale
Fork cable lug, 8-52929-1, AMP
Shape Description: SPADE-028, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Insulation Sleeve Color: Red, Ring & Spade Plating Material: Phosphor Bronze,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.56 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | phosphor bronze, tin-plated | |
| AWG cross-section | AWG 22 to 16 | |
| Version | forked cable lug | |
| Isolated | Yes | |
| Cable cross-section | 0.3-1.42 mm² | |
| Colour | red | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
