8-35151-2 | AMP

Insulated ring cable lug, 2.62-6.64 mm², AWG 12 to 10, 13.08 mm, M12, yellow, 8-35151-2

Order No.: 39P3547
EAN: 4099889593891
MPN:
8-35151-2
Series: PIDG

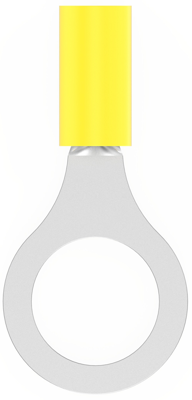

8-35151-2 AMP Cable Lugs Image 1

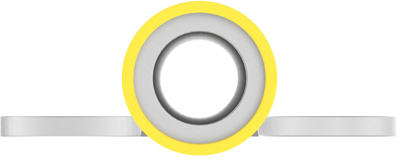

8-35151-2 AMP Cable Lugs Image 2

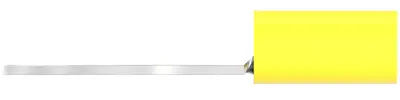

8-35151-2 AMP Cable Lugs Image 3

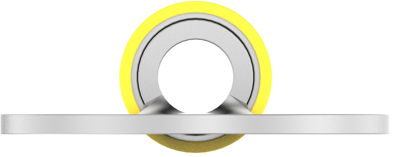

8-35151-2 AMP Cable Lugs Image 4

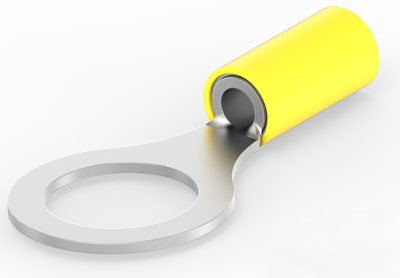

8-35151-2 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.0353 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
1,035.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
1.0353 €

Cable lug, 8-35151-2, AMP

Shape Description: RING-041, Ring & Spade Stud Size: 1/2,M12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 3.797 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 6.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 13.08 mm, Tongue Thickness: 1.02 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Version ring cable lug
max. operating temperature 105 °C
Colour yellow
Cable cross-section 2.62-6.64 mm²
AWG cross-section AWG 12 to 10
Material copper, tin-plated
Hole diameter 13.08 mm
Isolated Yes
Material Insulation PA
Thread size M12
Logistics
Property Value
Country of origin US
Customs tariff number 85369040
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
