8-34853-1 | AMP

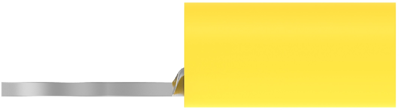

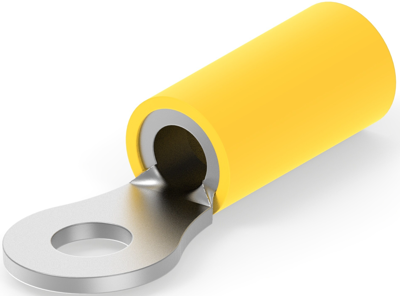

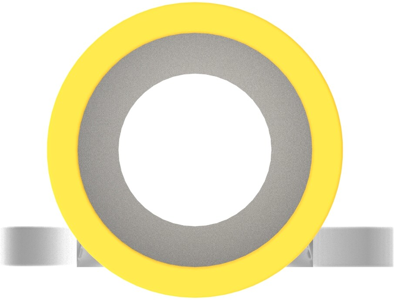

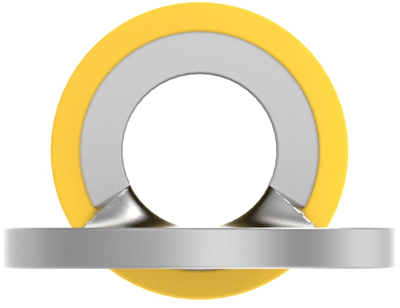

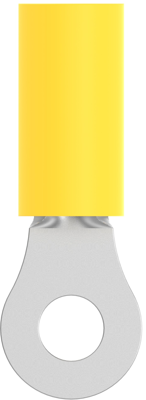

Insulated ring cable lug, 2.62-6.64 mm², AWG 12 to 10, 4.34 mm, M4, yellow
Unit Price (€ / pc.)
0.8806 € *
Available: 0 pcs.
Leadtime: 39 Weeks **
Cable lug, 8-34853-1, AMP
Shape Description: RING-043, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Weight per Piece: 2.078 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 6.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: 1 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 12 to 10 | |
| Colour | yellow | |
| Thread size | M4 | |
| Material Insulation | vinyl | |
| Isolated | Yes | |
| Cable cross-section | 2.62-6.64 mm² | |
| Hole diameter | 4.34 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
