8-34145-1 | AMP

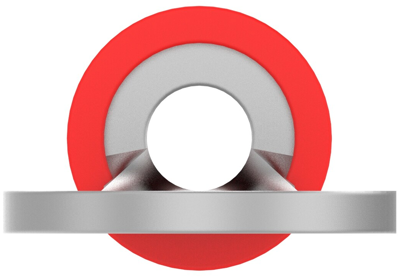

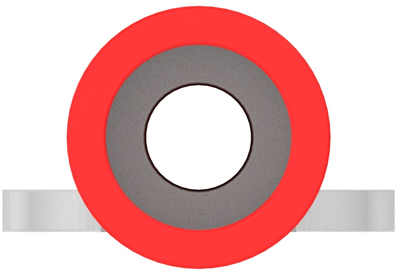

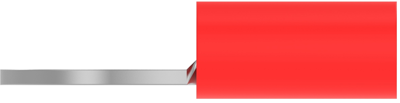

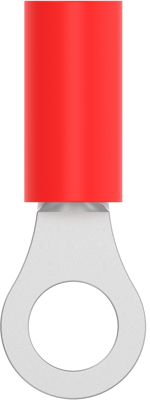

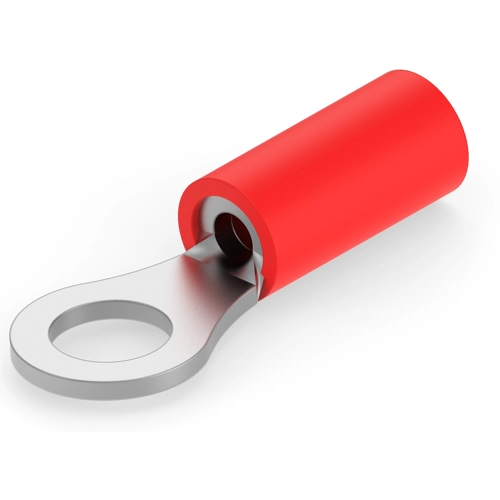

Insulated ring cable lug, 0.3-1.42 mm², AWG 22 to 16, 4.34 mm, M4, red
Unit Price (€ / pc.)
0.3689 € *
Available: 0 pcs.
Available in 5 Days: 2,507 pcs.
Leadtime: 1 Week **
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
300 pcs.
0.3689 €
1200 pcs.
0.3451 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 8-34145-1, AMP
Shape Description: RING-043, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Insulation Sleeve Color: Red, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | red | |
| Thread size | M4 | |
| Material Insulation | PVC | |
| Isolated | Yes | |
| Cable cross-section | 0.3-1.42 mm² | |
| Hole diameter | 4.34 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
