8-34108-1 | AMP
Uninsulated ring cable lug, 0.3-1.42 mm², AWG 22 to 16, 4.34 mm, M4, metal, 8-34108-1
Order No.: 39P8599
EAN: 4099889602357
MPN:
8-34108-1
Unit Price (€ / pc.)
0.3213 € *
Available in 5 Days: 1,400 pcs. - if ordered today

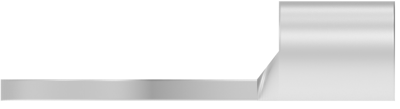

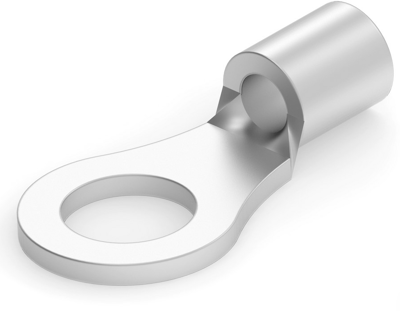

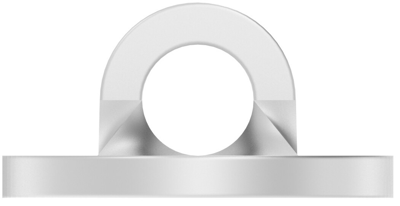

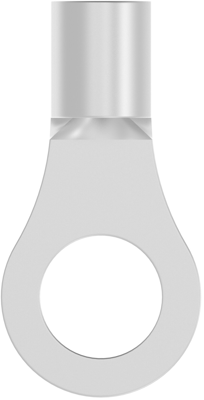

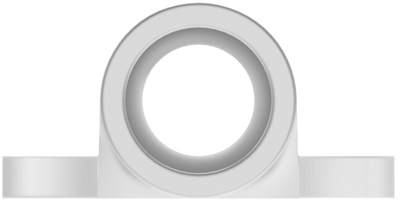

Ring cable lug, 8-34108-1, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.507 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 – 16 AWG, Wire Size: 0.3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| Thread size | M4 | |
| AWG cross-section | AWG 22 to 16 | |
| max. operating temperature | 170 °C | |
| Isolated | No | |
| Hole diameter | 4.34 mm | |
| Colour | metal | |
| Version | ring cable lug | |
| Cable cross-section | 0.3-1.42 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
