8-33462-1 | AMP

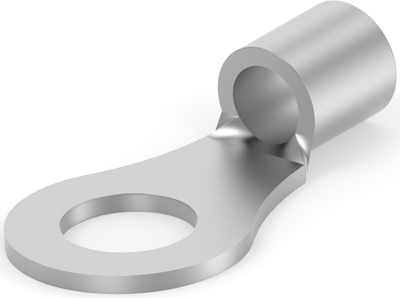

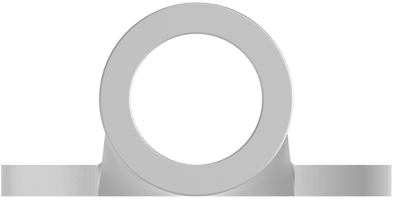

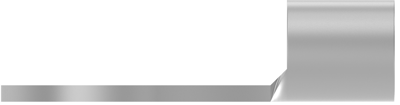

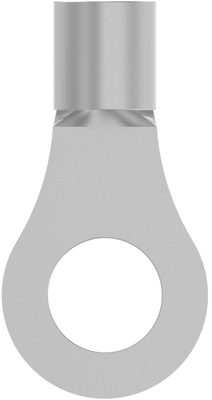

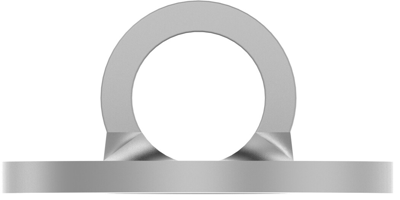

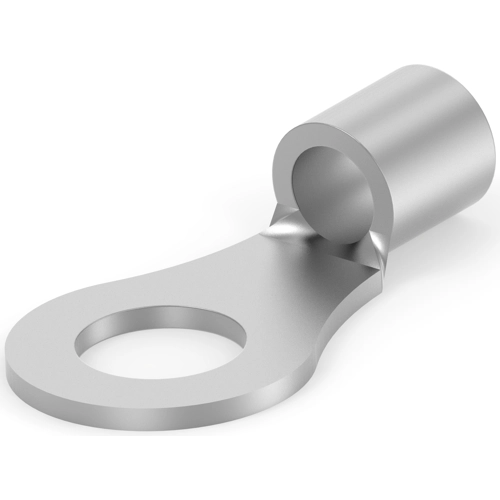

Uninsulated ring cable lug, 8 mm², AWG 8, 8.3 mm, M8, 8-33462-1
Order No.: 72P1899
EAN: 4099891605315
MPN:
8-33462-1
Unit Price (€ / pc.)
2.9274 € *
Standard delivery time from the manufacturer is: 45 Weeks
Total Price:
2.93 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9274 €
10 pcs.
2.7251 €
25 pcs.
2.5347 €
50 pcs.
2.3086 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lug, 8-33462-1, AMP
Ring terminal, Ring tongue, 8 AWG Wire size, 8 mm² Wire size, 13100 - 20800 CMA Wire size, Stud size 5/16 / M8.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 8 | |
| Hole diameter | 8.3 mm | |
| shrinkable tubing | No | |
| Thread size | M8 | |
| max. operating temperature | 170 °C | |
| Cable cross-section | 8 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
