8-329966-1 | AMP

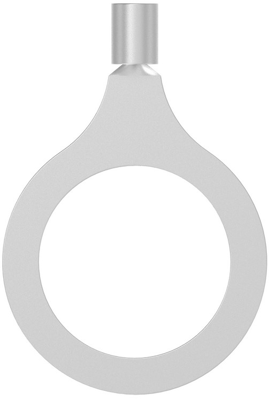

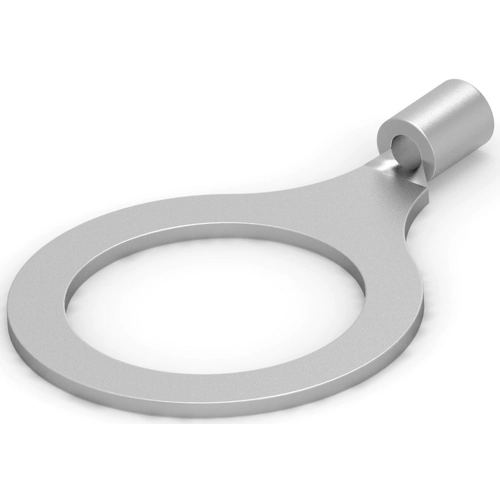

Uninsulated ring cable lug, 0.3-1.3 mm², AWG 22 to 16, 13.08 mm, M12, metal, 8-329966-1
Order No.: 39P8603
EAN: 4099889602388
MPN:
8-329966-1
Unit Price (€ / pc.)
1.7850 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
8.93 € *
Price list
Quantity
Price per unit*
5 pcs.
1.7850 €
10 pcs.
1.6541 €
25 pcs.
1.5351 €
50 pcs.
1.3923 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 8-329966-1, AMP
Shape Description: RING-048, Ring & Spade Stud Size: 1/2,M12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.516 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 22 – 16 AWG, Wire Size: .3 – 1.3 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 13.08 mm, Tongue Thickness: .46 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 22 to 16 | |
| Version | ring cable lug | |
| Isolated | No | |
| Cable cross-section | 0.3-1.3 mm² | |
| Colour | metal | |
| Hole diameter | 13.08 mm | |
| max. operating temperature | 170 °C | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
