8-326875-1 | AMP

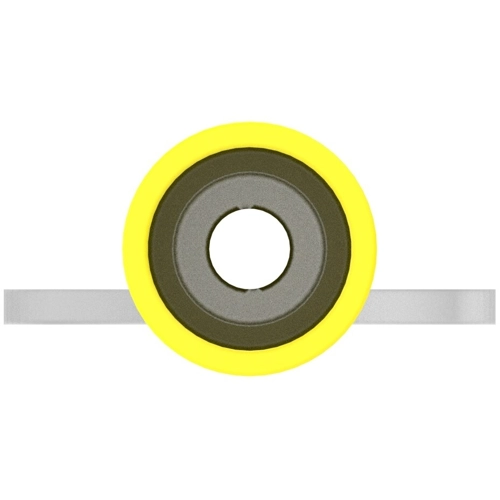

Insulated ring cable lug, 0.12-0.4 mm², AWG 26 to 22, 3.68 mm, M3.5, yellow, 8-326875-1
Order No.: 39P3655
EAN: 4099889594928
MPN:
8-326875-1
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7735 €
10 pcs.
0.7259 €
25 pcs.
0.6783 €
50 pcs.
0.6188 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring tongue terminal, 8-326875-1, AMP
Ring tongue terminal, Wire size: 26 - 22 AWG, Wire size: 0.12 - 0.4 mm², Wire size: 202 - 810 CMA, Stud size: 6, M3.5, Body style: PIDG
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 to 22 | |
| Hole diameter | 3.68 mm | |
| Colour | yellow | |
| Thread size | M3.5 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.12-0.4 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | SG |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
