8-32561-1 | AMP
Insulated forked cable lug, 0.3-1.42 mm², AWG 22, 3.68 mm, M3.5, red, 8-32561-1
Unit Price (€ / pc.)
0.7378 € *
Available in 5 Days: 1,755 pcs. - if ordered today
Total Price:
221.34 € *
Price list
Quantity
Price per unit*
300 pcs.
0.7378 €
700 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale

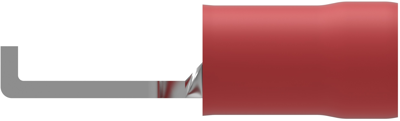

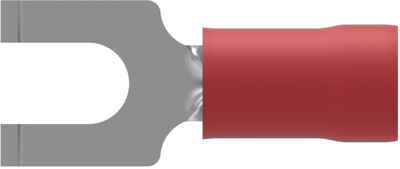

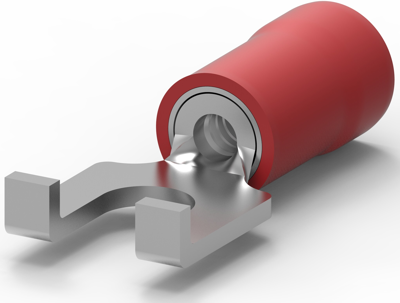

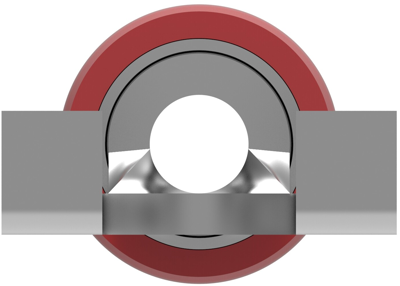

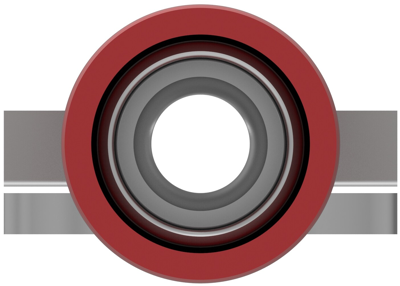

Spade cable lug, 8-32561-1, AMP
Spade terminal, Spade flange tongue, 22 AWG Wire size, 0.3-1.42 mm² Wire size, 509-3260 CMA Wire size, Stud size M3.5/#6.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | forked cable lug | |
| max. operating temperature | 105 °C | |
| Colour | red | |
| shrinkable tubing | Yes | |
| Cable cross-section | 0.3-1.42 mm² | |
| AWG cross-section | AWG 22 | |
| Material | copper, tin-plated | |
| Hole diameter | 3.68 mm | |
| Isolated | Yes | |
| Material Insulation | PA | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
