8-323916-1 | AMP

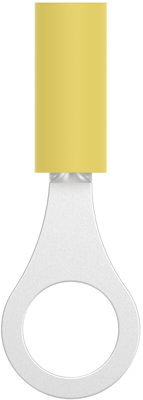

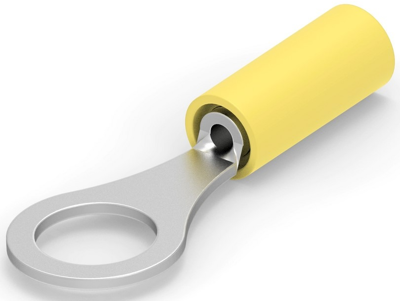

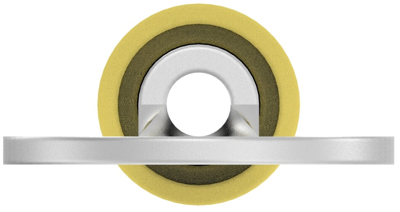

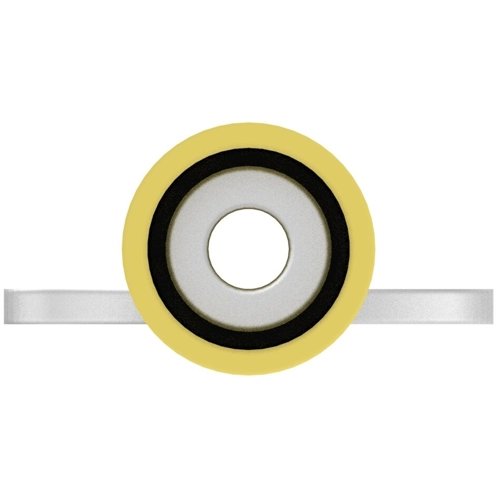

Insulated ring cable lug, 0.1-0.41 mm², AWG 26 to 22, 4.34 mm, M4, yellow, 8-323916-1
Unit Price (€ / pc.)
2.0706 € *
Available in 5 Days: 313 pcs. - if ordered today
Total Price:
10.35 € *
Price list
Quantity
Price per unit*
5 pcs.
2.0706 €
10 pcs.
1.9159 €
25 pcs.
1.7850 €
50 pcs.
1.6184 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 8-323916-1, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .302 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 26 – 22 AWG, Wire Size: .1 – .41 mm², Wire Size: 202 – 810 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .46 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 26 to 22 | |
| Version | ring cable lug | |
| Isolated | Yes | |
| Cable cross-section | 0.1-0.41 mm² | |
| Colour | yellow | |
| Hole diameter | 4.34 mm | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
